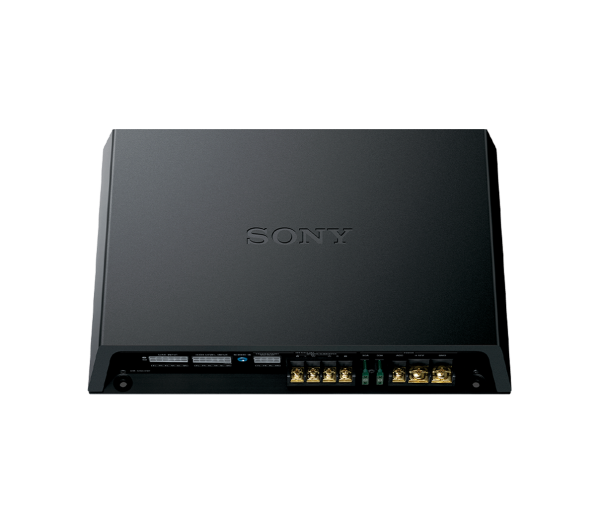

6/5 Channel Class D Amplifier with DSP
- Class-D amplification technology for high power
- DSP with 4.1-channel time alignment
- Customized sound with app control
- Low and high pass filters for accurate sound
- Heavy duty aluminum case
High Pass Filter
Variable: FRONT (500-4 kHz), REAR (50-500 Hz)
High-Pass Filter Slope
Low Pass Filter
Variable: REAR (500-4 kHz), SUBWOOFER (50-500 Hz)
Low-Pass Filter Slope
Bluetooth® General Features
Auto-Pairing for iOS Devices
Siri Eyes Free Mode
Sony | Music Center (Android™)
Sony | Music Center (iOS)
Secure Simple Pairing
CTA Rated Output Power
175W × 2 (SUB) at 1 kHz, 600 W × 1 (SUBWOOFER bridged) at 1 kHz
- Rated Power: CEA2006 Standard Power Output: 45 Watts RMS × 4 + 90 Watts RMS at 4 Ohms < 1% THD+N SN Ratio: 83 dBA (FRONT/REAR), 80 dBA (SUB) (reference: 1 Watt into 4 Ohms).
- Requires download of free Music Center App for iPhone from the App Store or for Android from Google Play. Subject to app terms and conditions. Music Center does not support iPhone 3G, iPod touch (3rd generation), iPod touch (2nd generation), iPod classic and iPod Nano.
- Interoperability and compatibility among Bluetooth® devices may vary.
