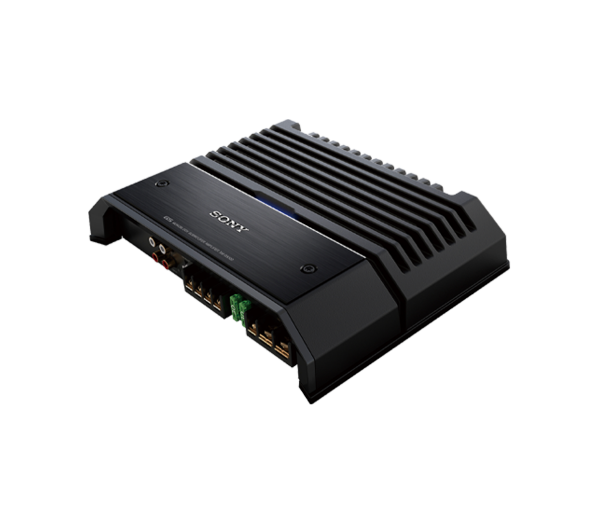

XM-GS100
Monaural Class D Amplifier
$279.99
Choose your option
Offers

Product highlights
- 330 W high power output
- 600 W (at 4 ohms), 1100 W x 1 (at 2 ohms)
- Active Thermal Control for stable playback
- Dynamic Distortion Suppressor for clear sound
- Low pass filte
Return policy
Specifications
Amplifier
Channel Configuration
Mono
Low Pass Filter
50-300 Hz
Low-Pass Filter Slope
12 dB/oct
Details
Bass Boost: Frequency (0 - 10 dB)
40 Hz
CTA Power output
330 W x 1
CTA SN Ratio
65 dBA
Current drain (A) - rated output power at 4 ohm
30A
Gold Plated Connectors
YES
Line In: Input Sensitivity
0.3–6
Line Out
YES (Through)
Load Capability (ohm)
NO/YES
MOSFET
YES
Speaker Level Input
YES
Subsonic High Pass Filter
YES
General Features
Frequency Response
10-300 Hz
Signal to Noise Ratio
100 dB
Tolerance
+0.5/-3 dB
Warranty
- CEA-2006 Compliant — Standardized “Voluntary” Testing & Measurement Methods for Mobile Audio Amplifiers. This standard advocates a uniform method for determining an amplifier’s RMS power and signal-to-noise ratio. Using 14.4 volts, RMS watts are measured into a 4-ohm impedance load at 1 percent Total Harmonic Distortion (THD) plus noise, at a frequency range (for general purpose amplifiers) of 20 Hz to 20,000 Hz.
