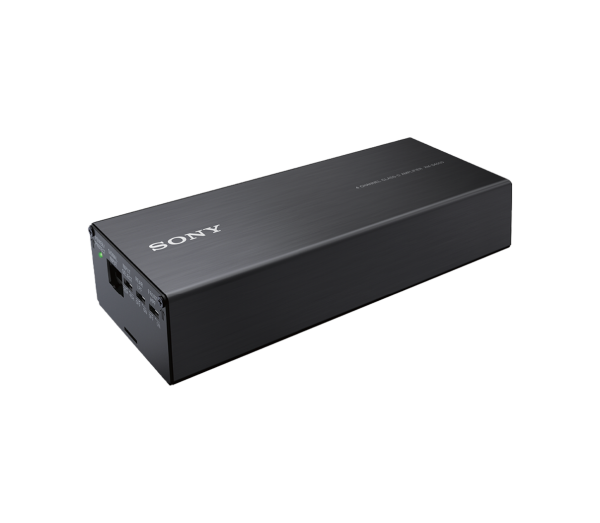

XM-S400D
4 Channel Class D Amplifier
$139.99
Only 3 left in stock
Product highlights
- Class-D amplification technology for high power
- 100 W x 4 maximum power output
- Low and high pass filters for accurate sound
- Speaker level inputs with power sensing for simple installation
- Overload protection circuit and speaker level input
Return policy
Specifications
Amplifier
Channel Configuration
4ch
High Pass Filter
120 Hz
High-Pass Filter Slope
12 dB/oct
Low Pass Filter
120 Hz
Low-Pass Filter Slope
12 dB/oct
Details
CEA Power output
45 W x 4
CEA SN Ratio
83 dBA
Current drain (A) - rated output power at 4 ohm
15 A
Line In: Input Sensitivity
1 V/8 V
MOSFET
Yes/Yes
General Features
Frequency Response
20-20 kHz
Signal to Noise Ratio
100 dB
Tolerance
+0.5/-3 dB
Total Harmonic Distortion at 1 kHz (%)
0.08%
Maximum Output Power (1 kHz)
Max. Channel Power Configuration at 4 ohm
100 W x 4
Warranty
- 4 Ohms, 20 Hz – 20 kHz, <1 % THD+N
